How to Connect to the Remote Desktop Using a Site-to-Site VPN

In this tutorial, you will learn how to connect to the remote desktop using a site-to-site VPN. Simply add a network card and add static routes to the server.



For pretty much every company, security is a top priority. Many businesses use VPNs between sites to increase security and protect their data. This tutorial will explain how to connect to the remote desktop using a VPN, thereby allowing users to connect from any location whilst preventing unauthorised access.

VPN connection between an office and the Jotelulu remote desktop server

VPN connection between an office and the Jotelulu remote desktop server

How to configure a connection to the remote desktop using a site-to-site VPN





Before you begin​:



To successfully complete this tutorial, you will need:



Before you begin:



Once you have created a VPC and a site-to-site VPN, this tutorial will explain how to connect the VPC on Jotelulu to your office network using the VPN tunnel. To make this as simple as possible, the initial example configuration is detailed below. This configuration can be easily seen in the VPN section from the Servers subscription page (Servers > VPN).



The starting setup is as follows:

  • Office IP Router (1): 185.31.23.149 (Pubic IP address of the device connecting using the VPN tunnel)
  • Office network  (2) : 192.168.0.0/16 (Office private network)
  • IP VPC (3): 185.31.23.177 (Public IP of the Jotelulu VPC router)
  • VPC Network: 10.1.0.0/16
  • Tier (4): 10.1.0.0/24

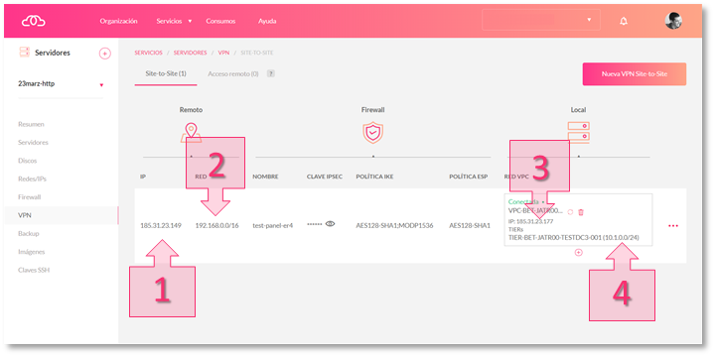

Before you begin: Initial network configuration, as shown in the VPN section

Before you begin: Initial network configuration, as shown in the VPN section

What this tutorial will explain is how to use this information to connect the Jotelulu VPC to an office network using a VPN tunnel, as shown in the diagram.

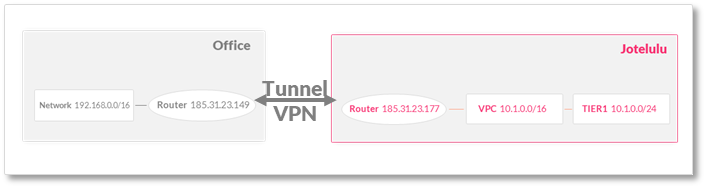

Diagram of a connection using a VPN tunnel

Diagram of a connection using a VPN tunnel

Step 1. Add a network card to the remote desktop server



First, open the Remote Desktop subscription page and click on the Servers section in the left-hand menu. Then, expand the Network Cards tab (Servers > Edit Server > Network Cards).



Now, click on Add Network Card (5).

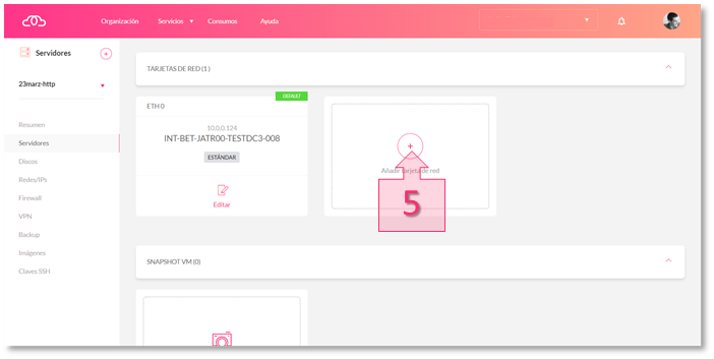

Step 1. Access the Network Cards section and add a new card

Step 1. Access the Network Cards section and add a new card

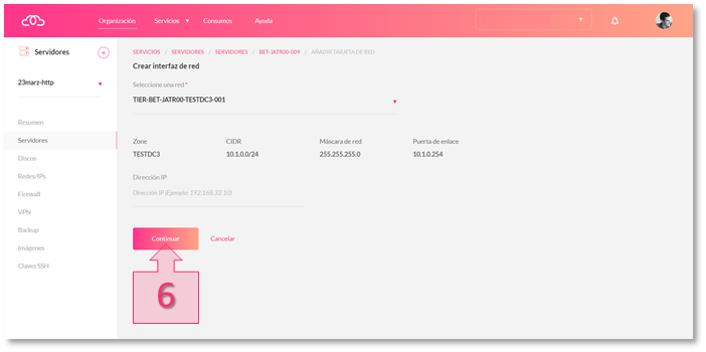

At this point, the Create Network Interface page will appear. Simply select the network from the drop-down list and click Continue (6). In this example, there is only one network available, TIER-BET-JARTR00-TESTDC3-001.

Step 1. Select a network and click Continue

Step 1. Select a network and click Continue

Once you have added the network card to the remote desktop server, the card will appear with an INT network interface (Standard Network) as DEFAULT and the second interface will be a TIER network (VPC network).

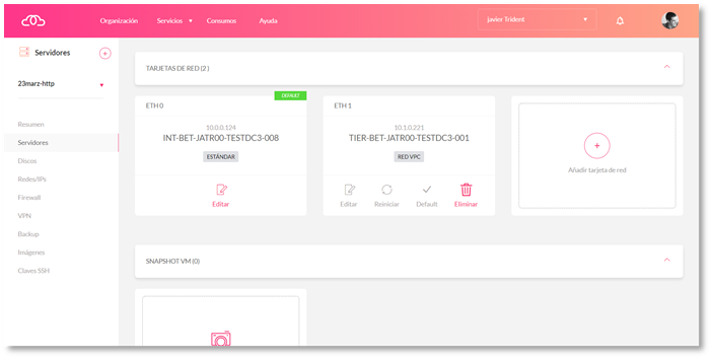

Step 1. Network card details once added

Step 1. Network card details once added

By default, the server will be routed through the gateway of the INT network (Standard) and you will have to add a static route to the office network.

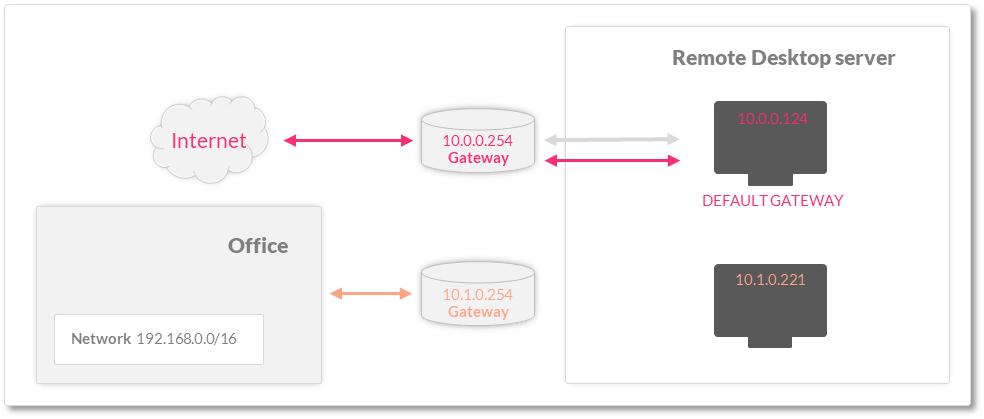

Step 1. Diagram of the VPN after adding a new network card

Step 1. Diagram of the VPN after adding a new network card

Step 2. Adding static routes to the remote desktop server



To connect to the office network, you will need to add a static route through the gateway of the tier network (VPC). To do this, you will need to connect to the server (RDP, CMD, etc.) to open the command prompt in administrator mode and run the command (7) to add a permanent route:



> route -p add 192.168.0.0 mask 255.255.0.0 10.1.0.254 METRIC 1

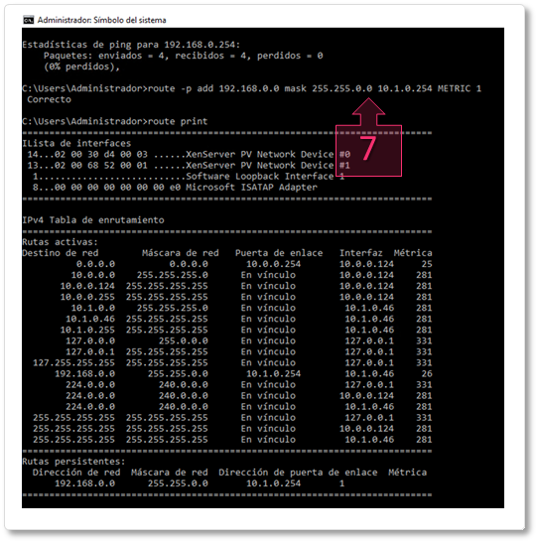

Step 2. Add the static route(s) on the remote desktop server using the command prompt

Step 2. Add the static route(s) on the remote desktop server using the command prompt

You will need to add a route for each remote network that will be connected to the VPN. After adding the static route, the final configuration will look something like the diagram below.

Step 2. Diagram of the VPN once configured.

Step 2. Diagram of the VPN once configured.



Summary:



Many organisations need to take serious steps to protect their data and prevent unauthorised access to their systems. In this tutorial, you have learnt how to protect access to your remote desktop by using a VPN.
